Cycle-Accurate Game Boy Emulator.

An emulator for the original Game Boy, built to answer a question I kept running into in embedded work: what does it actually take to reproduce a piece of hardware exactly, not approximately? The answer turned out to be timing. Everything in a Game Boy — CPU, pixel pipeline, timers, audio, DMA — moves in lockstep at 4 MHz, and games (and especially test ROMs) can observe disagreements of a single cycle.

So the emulator is T-cycle-stepped: the CPU drives time, every memory access advances every other component by exactly four cycles, and the PPU renders one dot per cycle through a pixel FIFO with the real fetcher behavior — sprite tile-hold penalties, the SCX discard, the window line counter, the LY=153 quirk. The oddities are the point: the HALT bug, the EI delay slot, OAM DMA bus conflicts, the timer’s falling-edge multiplexer and TIMA reload windows are all modeled, because the test suites check every one.

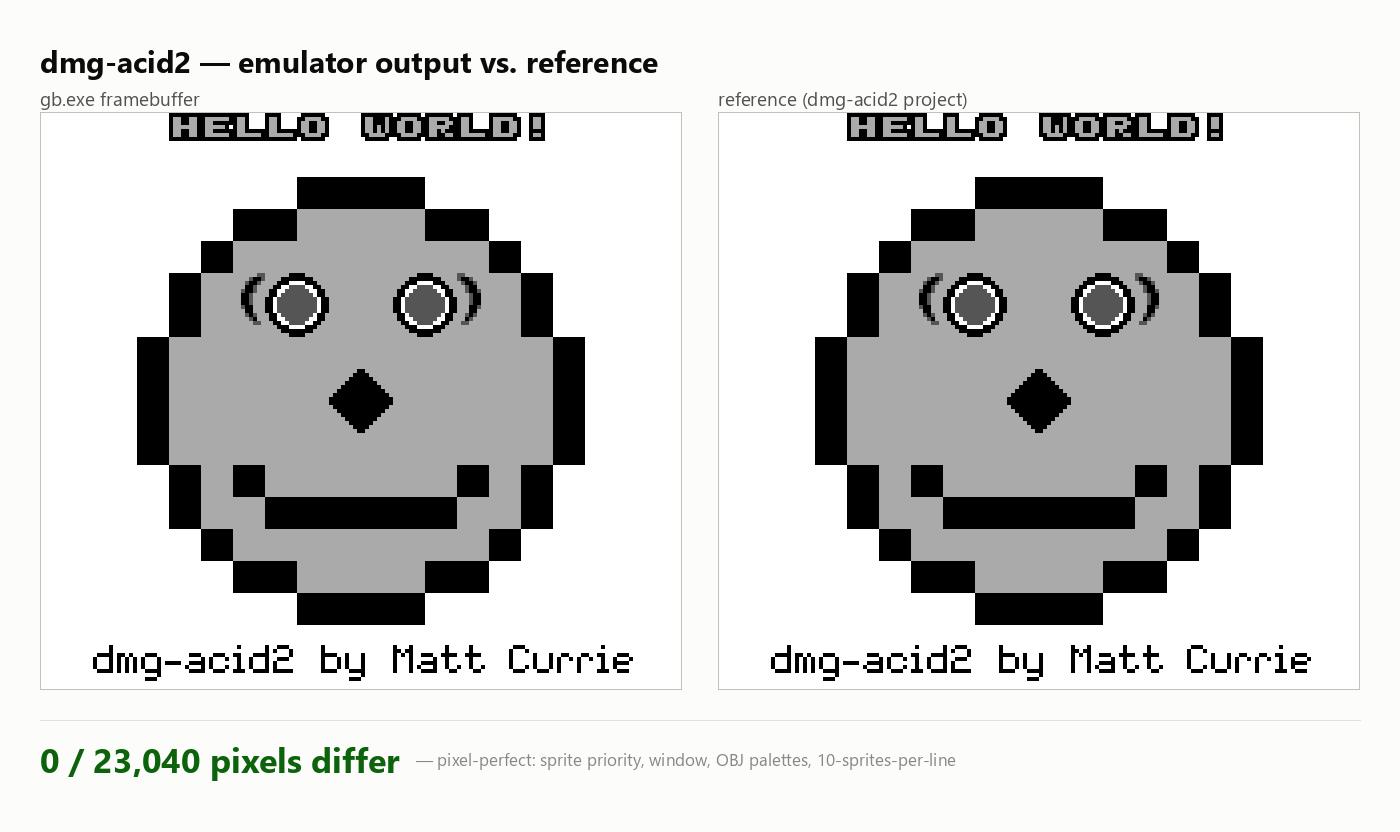

Validation is the part I’d show first. A headless harness runs the standard suites with automated pass/fail detection: all 34 Blargg CPU, timing, and sound tests pass; the dmg-acid2 rendering test matches the reference image with zero of 23,040 pixels differing; and 91 of 93 applicable tests in the Mooneye hardware-accuracy suite pass. The two failures are documented in the README with root causes — both come down to sub-cycle orderings my architecture intentionally quantizes, and I can say precisely which ordering each one needs.

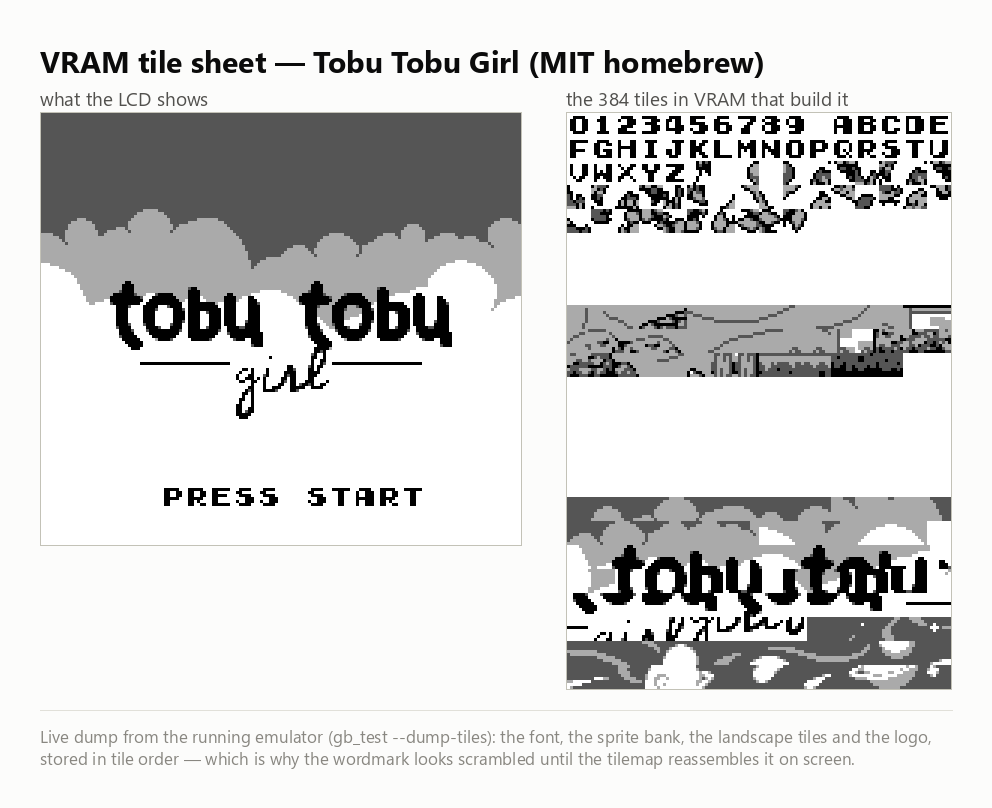

Beyond the core: five cartridge mappers (including MBC3 with real-time clock), battery saves, the four-channel APU with its trigger and power quirks, an SDL2 frontend that plays games at full speed with turbo, and a built-in debugger — pause, single-step, disassembly, and a live VRAM tile viewer. The core has no SDL dependency, so the same code runs headless in the test harness and interactively in the frontend.
