A RISC-V Computer From Scratch.
A complete RV32I CPU and SoC in ~700 lines of Verilog — passes all 41 official RISC-V instruction tests and runs C compiled with stock GCC.
I wanted to know what actually happens when a C program runs — not the block-diagram version, the real one. So I built the computer: a complete RV32I CPU and system-on-chip in Verilog, targeting the Tang Nano 9K FPGA.

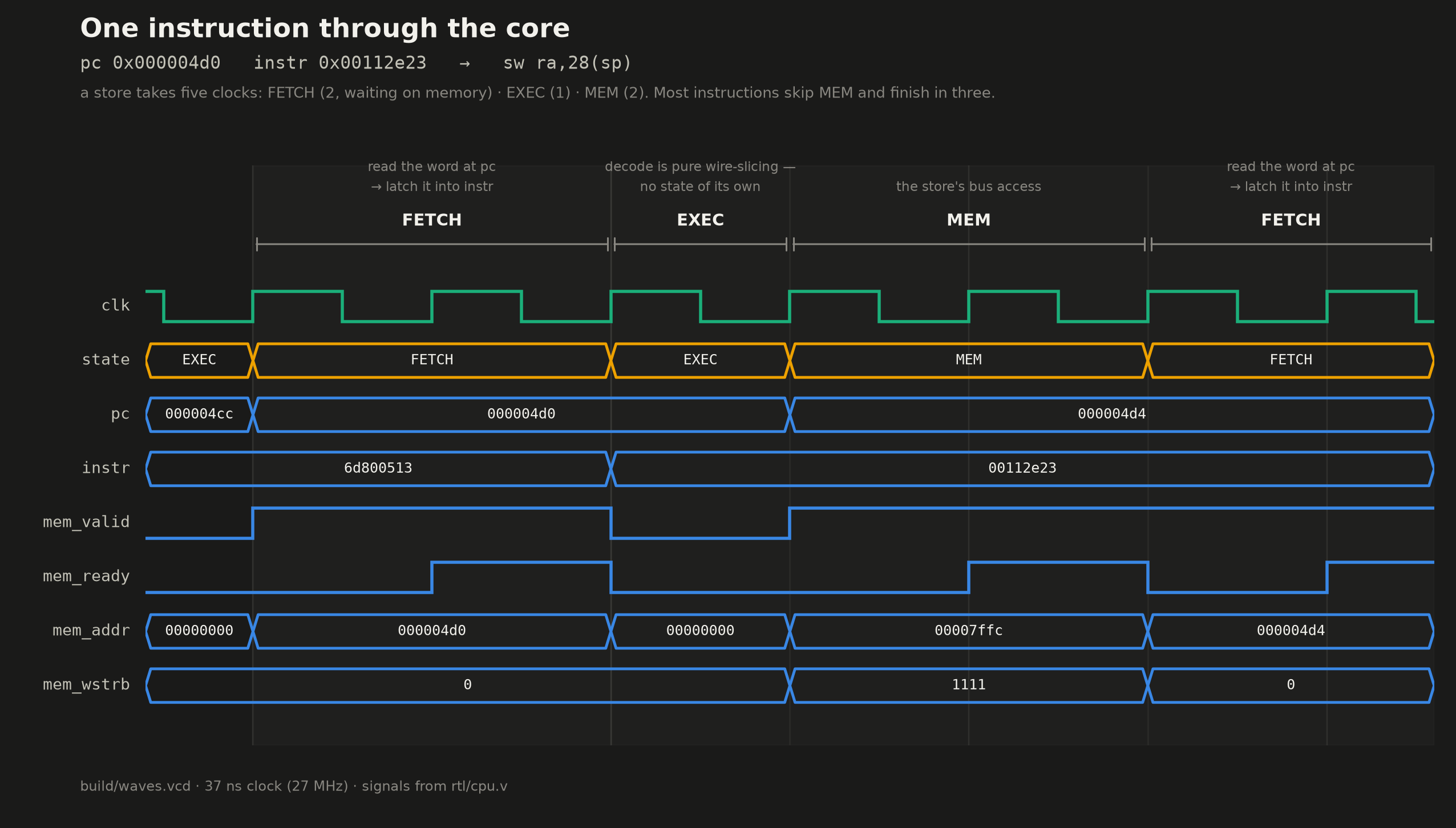

The core is deliberately simple — multi-cycle, three to five clocks per instruction, no pipeline — because the goal was understanding, not IPC. It implements every RV32I instruction and traps cleanly on illegal opcodes and misaligned access. Around it sits a small SoC: 32 KB of block RAM, a 115200-baud UART, GPIO for the board’s LEDs and buttons, and a 64-bit cycle counter, all glued together with a memory-mapped bus. The whole design is about 700 lines of Verilog, and it passes all 41 tests in the official RISC-V rv32ui suite.

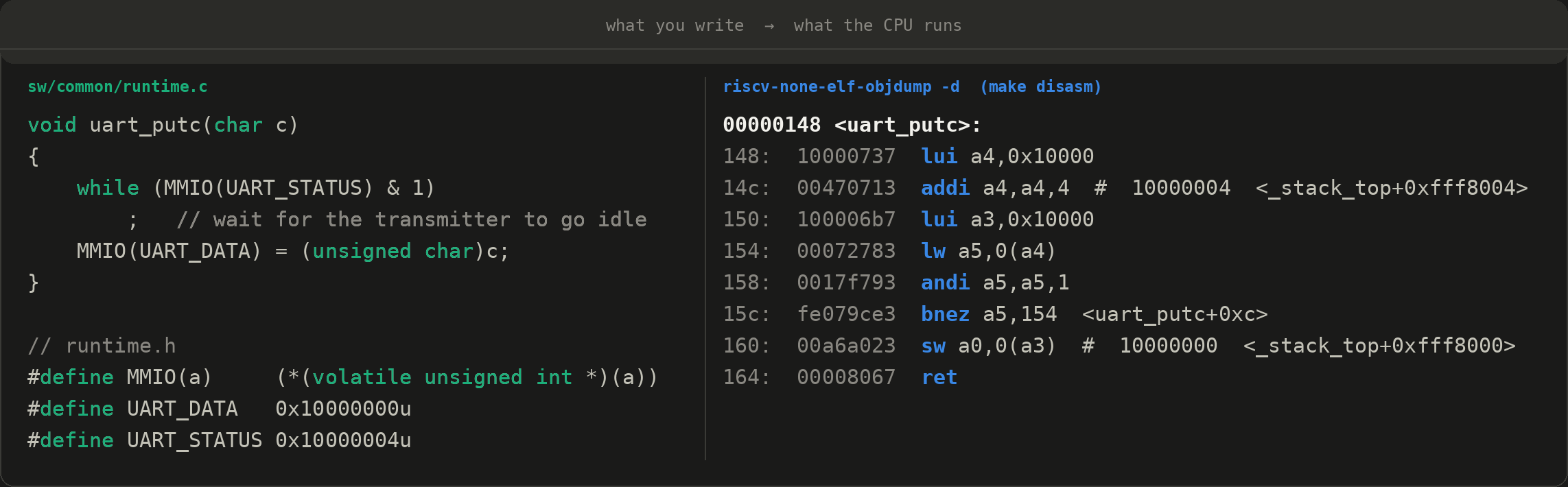

The part I underestimated was the software half. Making the hardware execute instructions was maybe 60% of the work; making it run C meant writing the linker script that decides where code and data live, the startup assembly that zeroes .bss and sets the stack pointer, and a minimal runtime with a printf that talks to the UART. The payoff is that stock gcc — no patches, no special flags beyond the arch — compiles a program that computes primes and prints them from a CPU I can read every line of.
The build flow is fully open-source: Icarus Verilog for simulation, Yosys for synthesis, nextpnr for place-and-route. The design uses 3,500 LUTs (41% of the chip) and closes timing at the 27 MHz system clock with margin to spare.
Next on the bench: bring-up on the physical board, then the v2 list — RV32M multiply/divide, interrupts, and a UART bootloader so I can load programs without rebuilding the bitstream.
