RF-Photonics Lab.
Learning digital communications by building the receive chain end to end — pulse shaping, timing recovery, QPSK through 256-QAM, and OFDM — on GNU Radio and a USRP B210.
00.01 — Context
This summer I joined Professor Thomas Clark’s RF-photonics lab at Michigan State University. The lab’s direction is photonics, and I am in charge of generating the signals using a B210 SDR.
00.02 — Climbing the chain
The workhorse is GNU Radio and a USRP B210. I have built 35+ flowgraphs working up the digital-communications chain end to end:
- FIR filtering and root-raised-cosine pulse shaping — bandlimiting the signal while satisfying the Nyquist criterion for zero inter-symbol interference at the sampling instants, with the matched filter split across TX and RX.
- Symbol-timing recovery — the receiver has no idea where the symbol boundaries are, and getting them wrong is not a small error. This is the block that taught me the most.
- Carrier frequency and phase offset correction — Costas loops, and the slow realization that a loop bandwidth is a tradeoff and not a setting.

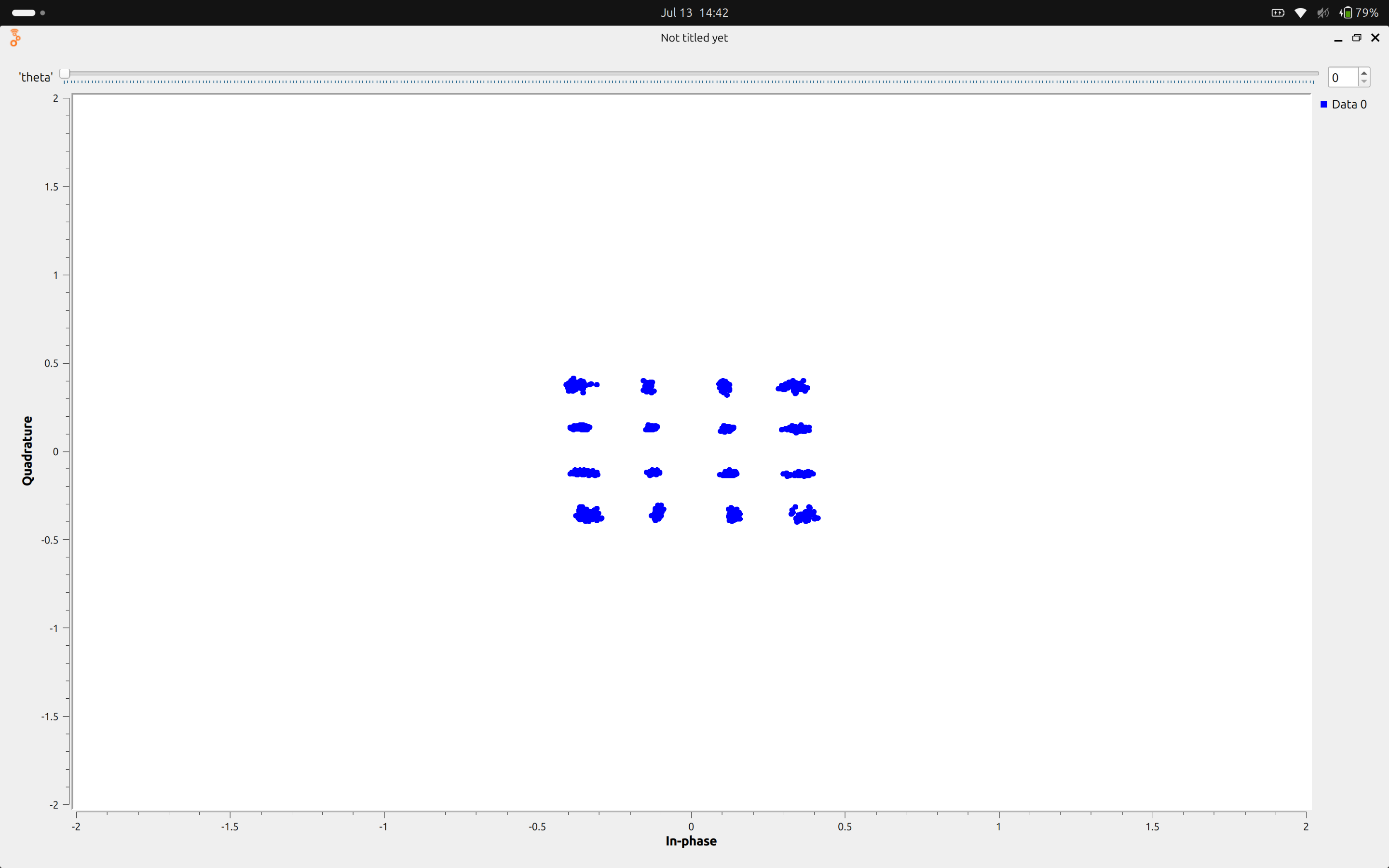

- Modulation and demodulation — QPSK, 16-QAM, and 256-QAM, transmitted and recovered.

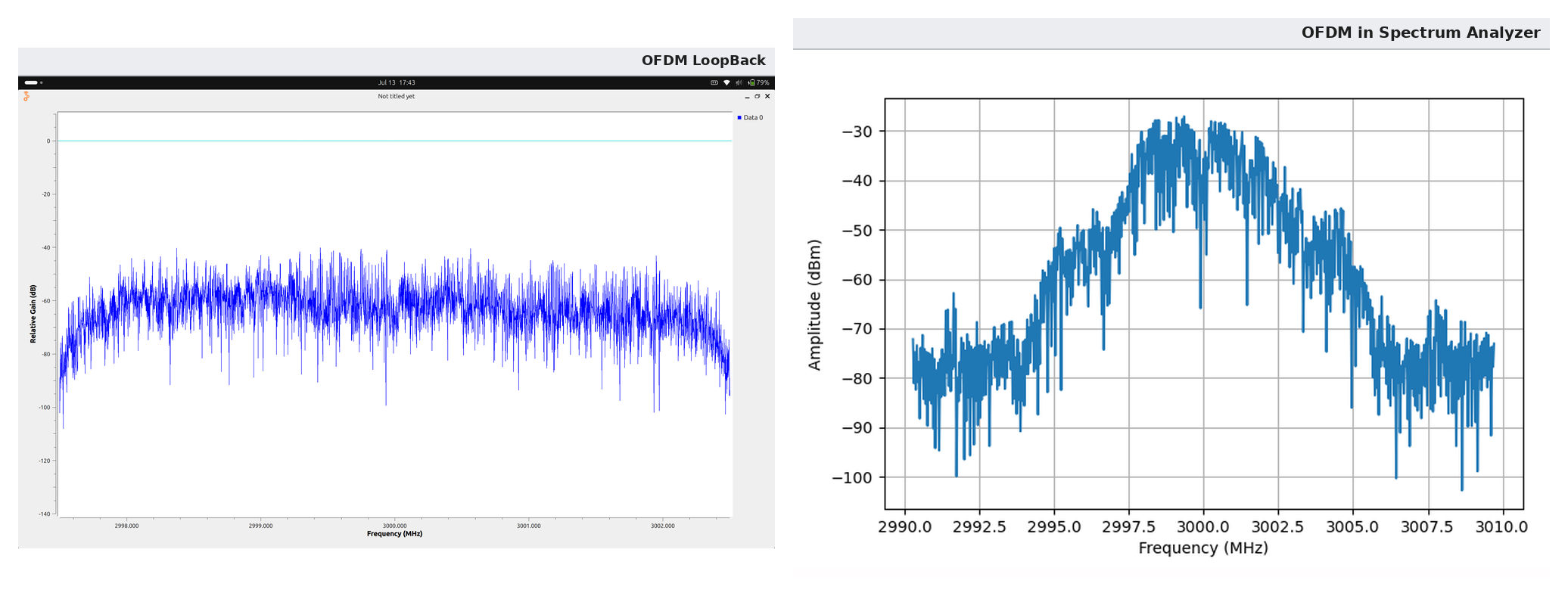

I am currently working on OFDM — simulated first with BPSK and QPSK subcarriers, then 16 and 256-QAM, corrected with symbol synchronization.
00.03 — Measurement
Links are only real once you have measured them. On the B210, over a conducted SMA path, I have characterized both single-carrier and OFDM links: quantifying bit-error rate, sweeping TX/RX gain to map out where constellation quality degrades, and pinning down the sources of inter-symbol interference rather than tuning until it looks acceptable.
A representative result: I cut square-wave rise/fall time from 135 ns to 45 ns on the B210 by optimizing sample rate, wave frequency, and gain — while keeping underflow errors under control, since the naive way to get a faster edge is to ask the hardware for more than it can stream.
00.04 — Tooling
Repetitive experiments beg for tooling, so I have been building it:
- An interactive constellation TX/RX CLI, wrapping a flowgraph and exposing 6 modulation schemes and 9 timing-error detectors — plus the pulse-shaping parameters — as prompts rather than GUI edits. Sweeping a parameter should not require twenty clicks in a graphical editor.
- Transmit and receive software written directly against the UHD Python API, including hand-coded signal transmission and IQ constellation generation. Dropping below GNU Radio’s abstraction layer is clarifying: you find out exactly which conveniences you had been leaning on.
- A real-time spectrum waterfall on the UHD Python API.
- IQ conversion utilities that turn raw captures into CSVs for offline analysis.
00.05 — Where it is going
The near-term goal is to finish the OFDM chain and take it from simulation onto hardware, then push toward sending the signals the lab actually cares about. The longer arc is the reason I wanted this position: the lab’s work sits where RF, photonics, and digital communications meet, and the receive chain is the part of that stack I want to understand from the sampling instant upward.
